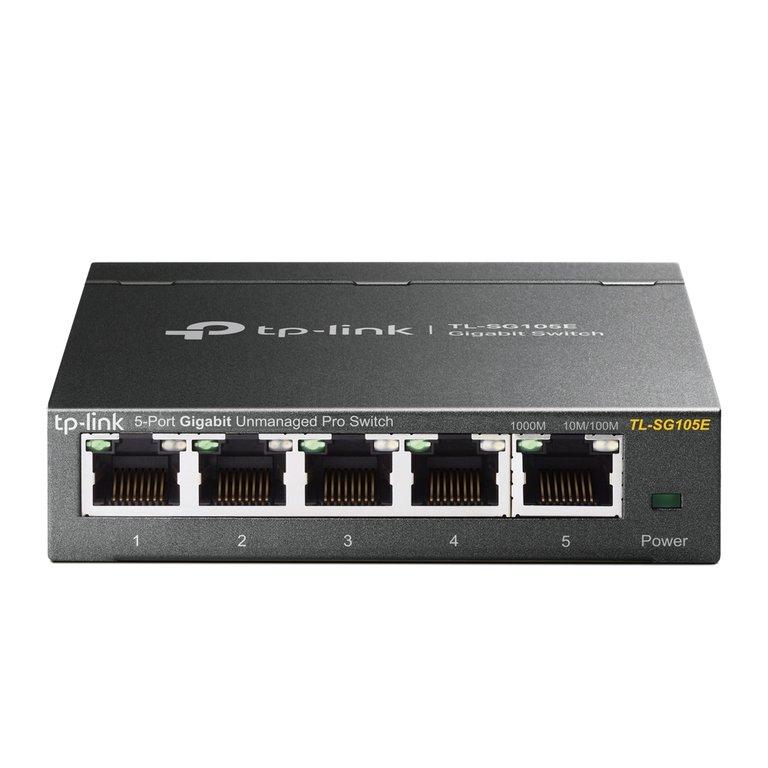

TL-SG105E 5-Port-Gigabit-Unmanaged Pro Switch
Switche Artikel-Code: TL-SG105E 5-Port-Gigabit-Unmanaged Pro Switch
- 5 Gigabit-RJ45-Ports mit Autoabstimmung und Auto-MDI/MDIX
- Plug-and-Play, keine Konfiguration notwendig
- Robustes Metallgehäuse für zuverlässige und professionelle Leistung
- Zentrales Management all Ihrer Easy-Smart-Switches über die Benutzeroberfläche und das Easy-Smart-Configuration-Utility
- Energieefiziente Green IT zum Energiesparen
| HARDWARE-FUNKTIONEN | ||||||
| Standards und Protokolle | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p | |||||
| Schnittstelle | 5 10/100/1000Mbps RJ45 Ports | AUTO Negotiation/AUTO MDI/MDIX | ||||
| Kabel | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) | EIA/TIA-568 100Ω STP (maximum 100m) | 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | EIA/TIA-568 100Ω STP (maximum 100m) | 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | EIA/TIA-568 100Ω STP (maximum 100m) |
| Anzahl Lüfter | Fanless | |||||
| Spannungsversorgung | External Power Adapter(Output: 9VDC/0.6A) | |||||
| Abmessungen (B*T*H) | 3.9 * 3.9 *1.0 in. (100 * 98 *25 mm) | |||||
| Maximale Leistungsaufnahme | 2.66W(220V/50Hz) | |||||
| Maximale Wärmeabgabe | 9.07BTU/h | |||||
| PERFORMANCE | ||||||
| Paketweiterleitungsrate | 7.4Mpps | |||||
| MAC-Adresstabelle | 2K | |||||
| Paketpufferspeicher | 1Mb | |||||
| Jumbo-Frames | 15KB | |||||
| SOFTWARE-FUNKTIONEN | ||||||
| Quality of Service | Support Port-based/802.1p/DSCP priority | Support 4 priority queues | Rate Limit | Storm Control | ||
| Layer2-Funktionen | IGMP Snooping V1/V2/V3 | Static Link Aggregation | Port Mirroring | Cable Diagnostics | Loop Prevention | |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) | MTU/Port/Tag VLAN | ||||
| Übertragungsmethode | Store-And-Forward | |||||
| SONSTIGES | ||||||
| Zertifizierung | FCC, CE, RoHS | |||||
| Verpackungsinhalt | TL-SG105E | Power Adapter | Installation Guide | Rubber Feet | ||
| Systemanforderungen | Microsoft® Windows® for running Utility | |||||
| Umgebung | Operating Temperature: 0℃~40℃ (32℉~104℉) | Storage Temperature: -40℃~70℃ (-40℉~158℉) | Operating Humidity: 10%~90% non-condensing | Storage Humidity: 5%~90% non-condensing |
