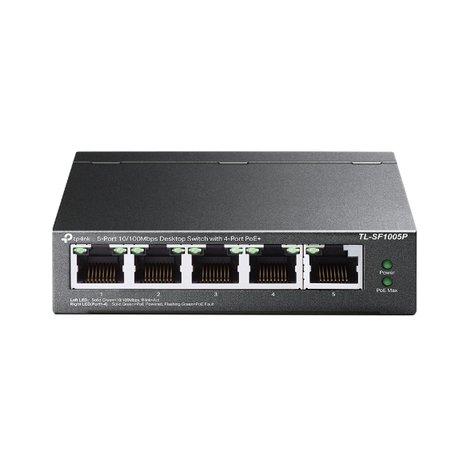

TL-SF1005P 5-Port 10/100Mbps Desktop Switch mit 4-Port PoE+
Switche Artikel-Code: TL-SF1005P 5-Port 10/100Mbps Desktop Switch mit 4-Port PoE+
| HARDWARE-FUNKTIONEN | |||||
| Schnittstelle | • 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports) | • AUTO Negotiation | • AUTO MDI/MDIX | ||
| Kabel | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) | • EIA/TIA-568 100Ω STP (maximum 100m) | • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | • EIA/TIA-568 100Ω STP (maximum 100m) | |
| Anzahl Lüfter | Fanless | ||||
| Physischer Diebstahlschutz | Yes | ||||
| Externe Spannungsversorgung | External Power Adapter (Output: 53.5 V DC / 1.31 A) | ||||
| Paketweiterleitungsrate | 0.744 Mpps | ||||
| PoE-Ports | • Standard: 802.3 af/at compliant | • PoE Ports: Ports 1–4 | • Power Supply: 67 W | ||
| MAC-Adresstabelle | 2K | ||||
| Jumbo-Frames | 2 KB | ||||
| Switchingkapazität | 1 Gbps | ||||
| Abmessungen (B*T*H) | 3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm) | ||||
| Maximale Leistungsaufnahme | • 1.9 W (220 V / 50 Hz, no PD connected) | • 74 W (220 V / 50 Hz, with 67 W PD connected) | |||
| Maximale Wärmeabgabe | • 6.48 BTU/h(no PD connected) | • 252.34 BTU/h(with 67 W PD connected) | |||
| SOFTWARE-FUNKTIONEN | |||||
| Übertragungsmethode | Store-And-Forward | ||||
| Erweiterte Funktionen | • Compatible With IEEE 802.3af/at Compliant PDs | • Extend Mode Button (Ports 1–4) | • Priority Mode Button (Ports 1–2) | • Mac Address Auto-Learning And Auto-Aging | • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| SONSTIGES | |||||
| Zertifizierung | FCC, CE, RoHS | ||||
| Verpackungsinhalt | • TL-SF1005P | • Power Adapter | • Installation Guide | ||
| Umgebung | • Operating Temperature: 0–40 ℃ (32–104 ℉) | • Storage Temperature: -40–70 ℃ (-40–158 ℉) | • Operating Humidity: 10–90% RH non-condensing | • Storage Humidity: 5–90% RH non-condensing |
